TP-Link Archer 8 Ultra

Name: TP-Link Archer 8 Ultra
Brand: TP-Link
SKU: Archer 8 Ultra

Released Oct 2026

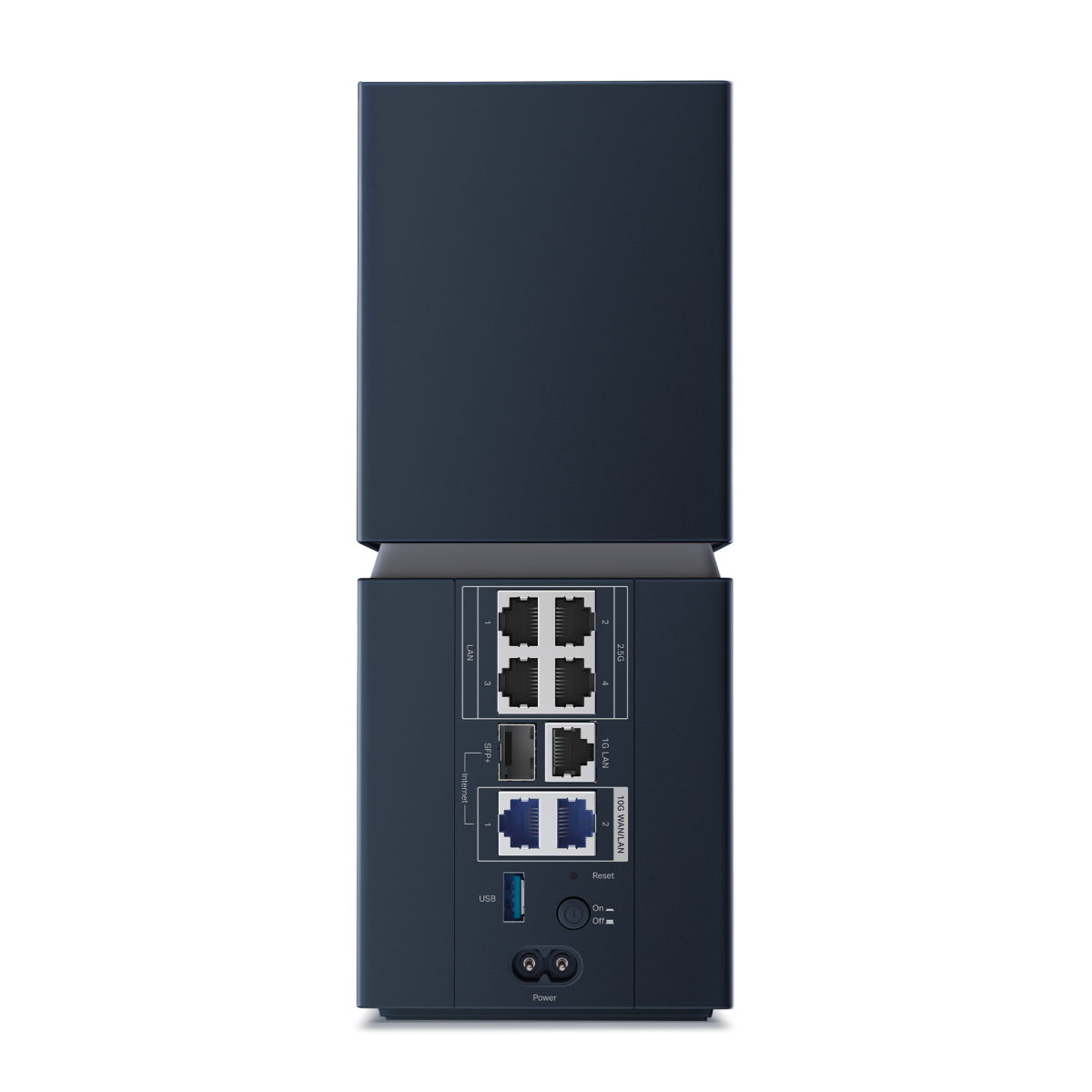

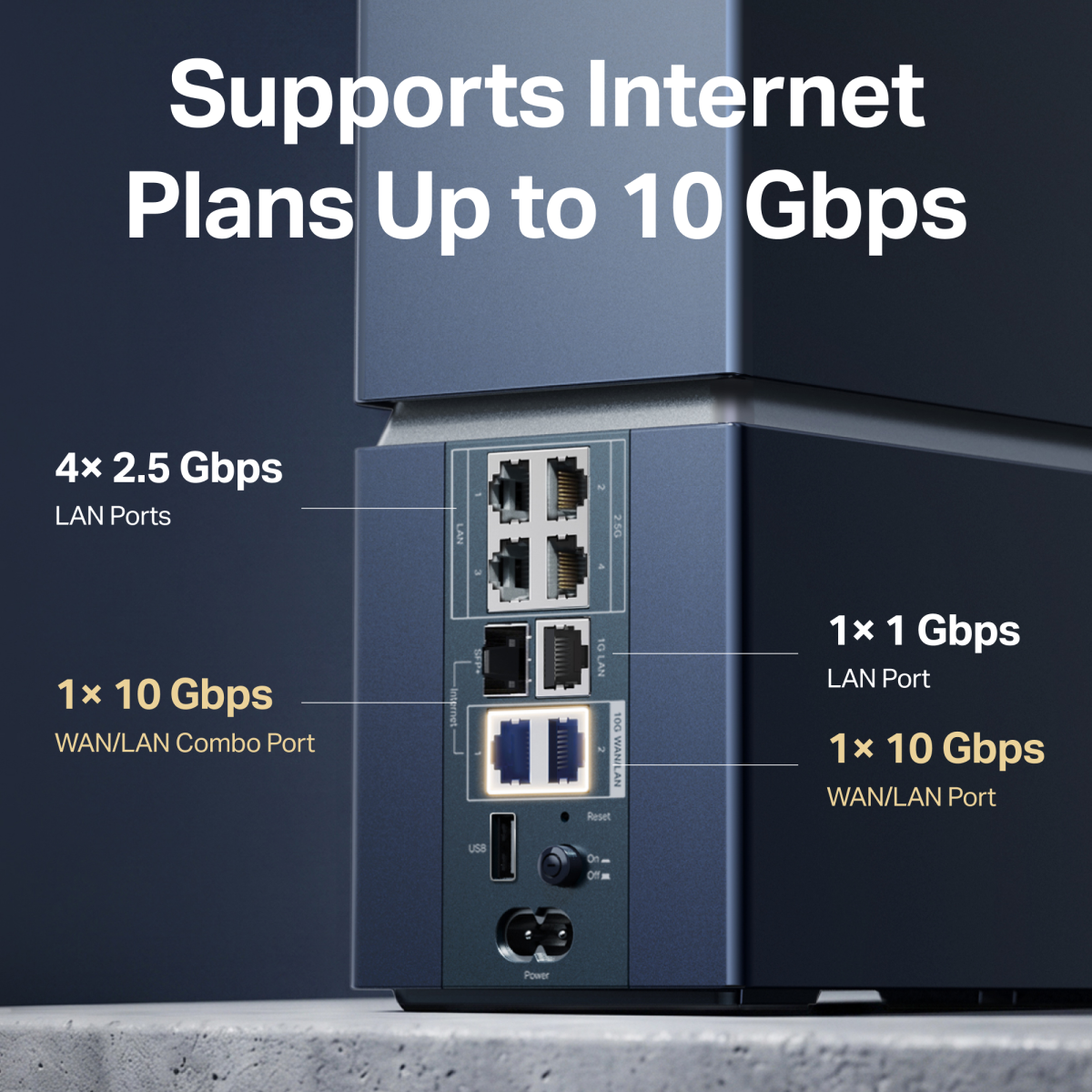

Tri-band BN19000 Wi-Fi 8 (IEEE 802.11bn) router, also listed by TP-Link as Archer BN800. Rated 11528 Mbps on 6 GHz, 5764 Mbps on 5 GHz and 1376 Mbps on 2.4 GHz, with 18 internal antennas. Wired ports: one 10 Gbps SFP+/RJ45 WAN/LAN combo, one 10 Gbps RJ45 WAN/LAN, four 2.5 Gbps LAN, one 1 Gbps LAN and one USB 3.0. Supports EasyMesh, HomeShield, and OpenVPN, WireGuard, PPTP and L2TP as both VPN server and client.

Wi-Fi

WiFi 7 (802.11be)

LAN Ports

At a glance

Highlights

Wi-Fi WiFi 7 (802.11be)

Supports IPv4, IPv6, WiFi (802.11a), WiFi (802.11b), WiFi (802.11g), WiFi 4 (802.11n), WiFi 5 (802.11ac), WiFi 6 (802.11ax), WiFi 6E (802.11axe), WiFi 7 (802.11be)

Tri-band

2.4 GHz · 5 GHz · 6 GHz

5 × Gigabit LAN

1 Gigabit WAN port

Mesh: Yes, Primary and Node

Compatible with mesh networking

Built-in VPN

Client: L2TP, OpenVPN, PPTP, WireGuard · Server: L2TP, OpenVPN, PPTP, WireGuard

Our coverage

Editorial

News (1)

TP-Link Archer 8 Ultra Wi-Fi 8 Router Skips US Launch Amid FCC Ban

Every detail

Full Specifications

General

9 specs

Manufacturer

TP-Link

Model

Archer 8 Ultra

Full Name

TP-Link Archer 8 Ultra

Homepage

Open website

Release Date

2026-10-01

Currently Sold

Yes

Manufacturer Support

Yes

Operating System

Proprietary OS

Mesh Integration

Yes, Primary and Node

Hardware

1 spec

Internal Antennas

Connectivity

12 specs

Network Standards

IPv4 IPv6 WiFi (802.11a) WiFi (802.11b) WiFi (802.11g) WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) WiFi 6E (802.11axe) WiFi 7 (802.11be)

Operating Modes

Accesspoint Router

2.4 GHz Support

Yes

5 GHz Support

Yes

6 GHz Support

Yes

Gigabit LAN Ports

LAN Aggregation

WAN Aggregation

USB Ports

USB-A (3.0) (1)

WAN Connection Types

Automatic IP L2TP PPPOE PPTP Static IP

Cable Modem

Fibre Modem

Core Features

8 specs

VPN Clients

L2TP OpenVPN PPTP WireGuard

VPN Servers

L2TP OpenVPN PPTP WireGuard

Smart Home Integrations

Alexa Google Home

Mobile App

Tether

WPS Button

Yes

Reset Button

Yes

Power Switch

Yes

LED Switch

Yes

Physical

9 specs

Length (mm)

98.00

Width (mm)

226.00

Height (mm)

245.60

110V Power Supply

220V Power Supply

Horizontal Positioning

Vertical Positioning

Yes

Wall Mountable

Package Content

BN19000 Tri-Band Wi-Fi 8 Router; Power Cord; RJ45 Ethernet Cable; Quick Installation Guide

Features Matrix

all software features at a glance

Wi-Fi

IPv6 MU-MIMO Encryption UTF-8 SSID Guest Network WPS MAC Filter Scheduler Airtime Fairness RADIUS Server Universal Beamforming Explicit Beamforming IGMP Snooping

QoS & Traffic

Parental Control Adaptive QoS Traditional QoS Bandwidth Monitor Bandwidth Limiter Traffic Monitor Traffic Analyzer Website History Gaming Acceleration

WAN & LAN

Dual WAN 3G/4G Dongle Android Tethering Port Forwarding DDNS DMZ NAT Passthrough Port Triggering DHCP Server IPTV LAN Link Aggregation

USB & Storage

File System HDD Hibernation Safely Remove Download Master Media Server Time Machine Samba FTP Shared Folder Cloud Access

Admin & Security

Firewall Wake on LAN SSH Access Config Backup/Restore Diagnosis Tools Feedback System System Log Antivirus Site Blocking Auto Firmware Update
